Designed for Real-World Performance.
Flip-Chip COB Reliability
Encapsulated LEDs protect against dust, moisture, and impact while providing superior heat dissipation and color uniformity.
Smooth Visuals at Any Distance
High refresh rates and uniform brightness deliver flicker-free imagery for presentations, signage, and video playback.
Fast, Streamlined Installation
Akari Core cabinets mount to vertical alignment rails that connect each column precisely, reducing setup time and ensuring perfectly even seams across large walls.
Efficient Power, Minimal Heat
Advanced flip-chip architecture lowers power consumption and thermal output — allowing a 136″ display to run on a single 120V / 20A circuit.
Engineered for
Everyday Performance

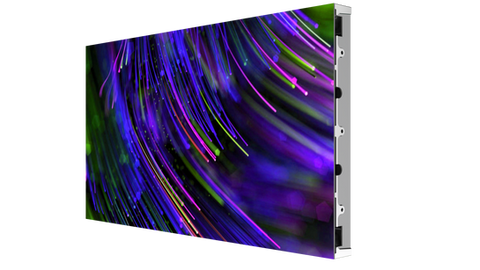

Akari Core is a versatile COB LED display engineered for clarity, efficiency, and long-term reliability. Its smooth surface and vivid color make it ideal for meeting rooms, classrooms, hospitality venues, and luxury homes. With front service access and low power consumption, Core simplifies installation while delivering stunning visual impact.
Pixel Pitches: 0.9 mm | 1.2 mm | 1.5 mm | 1.8 mm
Optional Cabinet Sizes: 600 x 337.5 mm (27.1") and 1200 x 675 mm (54.21")
Specifications
Specifications:
Details:
Model Name
Akari Core 0.9
Pixel Pitch
0.9375 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
640 x 360 pixels
Large Cabinet Resolution
1280 x 720 pixels
Maximum Brightness
600 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
HDR Support
Yes
LED Refresh Rate
3840 Hz
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 2 x 2 | Large Cabinet: 4 x 4
Module Resolution
320 x 180 Pixels
Standard Cabinet Weight
8.6 lbs | 3.9 kg
Large Cabinet Weight
34.39 lbs | 15.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 81 W | Large Cabinet: 324 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Core 1.2
Pixel Pitch
1.25 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
480 x 270 pixels
Large Cabinet Resolution
960 x 540 pixels
Maximum Brightness
600 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
HDR Support
Yes
LED Refresh Rate
3840 Hz
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 2 x 2 | Large Cabinet: 4 x 4
Module Resolution
240 x 135 Pixels
Standard Cabinet Weight
8.6 lbs | 3.9 kg
Large Cabinet Weight
34.39 lbs | 15.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Core 1.5
Pixel Pitch
1.5625 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
384 x 216 pixels
Large Cabinet Resolution
768 x 432 pixels
Maximum Brightness
600 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
HDR Support
Yes
LED Refresh Rate
3840 Hz
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 2 x 2 | Large Cabinet: 4 x 4
Module Resolution
192 x 108 Pixels
Standard Cabinet Weight
8.6 lbs | 3.9 kg
Large Cabinet Weight
34.39 lbs | 15.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Core 1.8
Pixel Pitch
1.875 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
320 x 180 pixels
Large Cabinet Resolution
640 x 360 pixels
Maximum Brightness
600 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
HDR Support
Yes
LED Refresh Rate
3840 Hz
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 2 x 2 | Large Cabinet: 4 x 4
Module Resolution
160 x 90 Pixels
Standard Cabinet Weight
8.6 lbs | 3.9 kg
Large Cabinet Weight
34.39 lbs | 15.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
