Designed for Real-World Performance.
Flip-Chip COB Reliability
Encapsulated LEDs protect against dust, moisture, and impact while providing superior heat dissipation and color uniformity.
True-to-Life Depth and Detail
16-bit processing delivers over 65,000 brightness levels for smooth gradients, lifelike contrast, and natural depth in every image.
Fast, Streamlined Installation

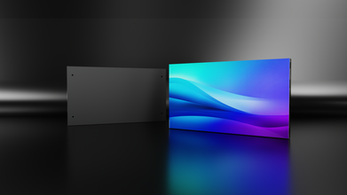

Akari Apex cabinets mount to vertical alignment rails that connect each column precisely, reducing setup time and ensuring perfectly even seams across large walls.
Efficient Power, Minimal Heat
Advanced flip-chip architecture lowers power consumption and thermal output — allowing a 136″ display to run on a single 120V / 20A circuit.
Specifications
Specifications:
Details:
Model Name
Akari Apex 0.6
Pixel Pitch
0.625 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
960 x 540 pixels
Large Cabinet Resolution
1920 x 1080 pixels
Data Throughput
1 Gbps or optional 5 Gbps
Maximum Brightness
1000 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
Color Gamut
≥97% DCI-P3 Optional
HDR Support
Yes
LED Refresh Rate
3840 or optional 7680 Hz
Contrast Ratio
20000:1
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 4 x 2 | Large Cabinet: 8 x 4
Module Resolution
240 x 270 Pixels
Standard Cabinet Weight
10.14 lbs | 4.6 kg
Large Cabinet Weight
41.01 lbs | 18.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Apex 0.7
Pixel Pitch
0.78125 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
768 x 432 pixels
Large Cabinet Resolution
1536 x 864 pixels
Data Throughput
1 Gbps or optional 5 Gbps
Maximum Brightness
1000 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
Color Gamut
≥97% DCI-P3 Optional
HDR Support
Yes
LED Refresh Rate
3840 or optional 7680 Hz
Contrast Ratio
20000:1
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 4 x 2 | Large Cabinet: 8 x 4
Module Resolution
192 x 216 Pixels
Standard Cabinet Weight
10.14 lbs | 4.6 kg
Large Cabinet Weight
41.01 lbs | 18.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Apex 0.9
Pixel Pitch
0.9375 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
640 x 360 pixels
Large Cabinet Resolution
1280 x 720 pixels
Data Throughput
1 Gbps or optional 5 Gbps
Maximum Brightness
1000 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
Color Gamut
≥97% DCI-P3 Optional
HDR Support
Yes
LED Refresh Rate
3840 or optional 7680 Hz
Contrast Ratio
20000:1
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 4 x 2 | Large Cabinet: 8 x 4
Module Resolution
160 x 180 Pixels
Standard Cabinet Weight
10.14 lbs | 4.6 kg
Large Cabinet Weight
41.01 lbs | 18.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Apex 1.2
Pixel Pitch
1.25 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
480 x 270 pixels
Large Cabinet Resolution
960 x 540 pixels
Data Throughput
1 Gbps or optional 5 Gbps
Maximum Brightness
1000 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
Color Gamut
≥97% DCI-P3 Optional
HDR Support
Yes
LED Refresh Rate
3840 or optional 7680 Hz
Contrast Ratio
20000:1
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 2 x 2 | Large Cabinet: 4 x 4
Module Resolution
240 x 135 Pixels
Standard Cabinet Weight
10.14 lbs | 4.6 kg
Large Cabinet Weight
41.01 lbs | 18.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Apex 1.5
Pixel Pitch
1.5625 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
384 x 216 pixels
Large Cabinet Resolution
768 x 432 pixels
Maximum Brightness
1000 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
Color Gamut
≥97% DCI-P3 Optional
HDR Support
Yes
LED Refresh Rate
3840 or optional 7680 Hz
Contrast Ratio
20000:1
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 2 x 2 | Large Cabinet: 4 x 4
Module Resolution
192 x 108 Pixels
Standard Cabinet Weight
10.14 lbs | 4.6 kg
Large Cabinet Weight
41.01 lbs | 18.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Specifications:
Details:
Model Name
Akari Apex 1.8
Pixel Pitch
1.875 mm
LED Type
Flip Chip COB (Chip-on-Board)
Standard Cabinet Resolution
320 x 180 pixels
Large Cabinet Resolution
640 x 360 pixels
Maximum Brightness
1000 nits
Brightness Uniformity
≥98%
Color Uniformity
≥95%
Color Gamut
≥97% DCI-P3 Optional
HDR Support
Yes
LED Refresh Rate
3840 or optional 7680 Hz
Contrast Ratio
20000:1
Color Temperature Range
2000 - 10,000 K
Viewing Angles
170° Horizontal / 170° Vertical
Cabinet Diagonal
Standard Cabinet: 27.1" | Large Cabinet: 54.21"
Standard Cabinet Size (W x H x D)
600 x 337.5 x 40 (mm) | 23.62 x 13.29 x 1.57 (in)
Large Cabinet Size (W x H x D)
1200 x 675 x 40 (mm) | 47.24 x 26.57 x 1.57 (in)
Module Configuration (W x H)
Standard Cabinet: 2 x 2 | Large Cabinet: 4 x 4
Module Resolution
160 x 90 Pixels
Standard Cabinet Weight
10.14 lbs | 4.6 kg
Large Cabinet Weight
41.01 lbs | 18.6 kg
Serviceability
Front Access - Module Removal
Runtime Duty Cycle
24 hrs / day | 7 days / week
LED Lifetime, Typical
100,000 hours
ADA Compliant
Yes
Line Voltage
100-240 V AC, 50/60 Hz
Maximum Power Consumption
Standard Cabinet: 70.9 W | Large Cabinet: 283.5 W
Operating Temperature / Humidity
14°F - 104°F | 10% ~ 90% RH
Certificates
CE, FCC, CB, ETL
Compare with Other Product Series
Engineered for
Exceptional Performance
Akari Apex sets the benchmark for professional-grade LED performance. Powered by advanced COB (Chip-on-Board) technology, it delivers 15,000:1 contrast, 16-bit grayscale depth, and up to 3,500 nits of brightness for exceptional color fidelity and visual precision. With consistent low power draw and optional 1G or 5G data configurations, Apex simplifies cabling and enhances data efficiency for both small-scale installations and large commercial deployments.
Pixel Pitches: 0.6 mm | 0.7mm | 1.2 mm | 1.5 mm | 1.8 mm
Optional Cabinet Sizes: 600 x 337.5 mm (27.1") and 1200 x 675 mm (54.21")
Optional Data Configurations: 1G or 5G — the 5G option allows more panels per connection, minimizing cabling and simplifying setup
